Evacuation Diagram Requirements in SA
Evac Maps is a leading specialist in evacuation diagram requirements in SA. We deliver signage that is fully compliant, affordable, and tailored to your site. With in-house design and production, Evac Maps guarantees a fast turnaround without compromising on accuracy or quality. Evac Maps specialises in producing fully compliant evacuation diagrams for businesses across South Australia. With over 15 years of expertise in fire safety signage, the company offers 100% compliance, fast turnaround, and affordable pricing.
Fire safety is not just a legal obligation, but a critical component in protecting lives and property. In South Australia, evacuation diagrams are mandatory in short-stay, commercial, and public buildings. These diagrams must strictly comply with Australian Standard 3745-2010, which outlines the requirements for displaying emergency and evacuation procedures. Non-compliance can result in severe penalties, making it essential for businesses to work with a trusted provider.
Explore the Evacuation Diagrams Requirements in SA
Workplace safety regulations in South Australia require that evacuation diagrams be clearly displayed in all facilities. These diagrams are more than just wall signage; they serve as a life-saving guide in the event of an emergency. Whether it’s a fire, a gas leak, or another critical situation, staff and visitors must be able to identify exits, fire equipment, and assembly areas. Here are the evacuation diagram requirements in SA according to AS 3745-2010.

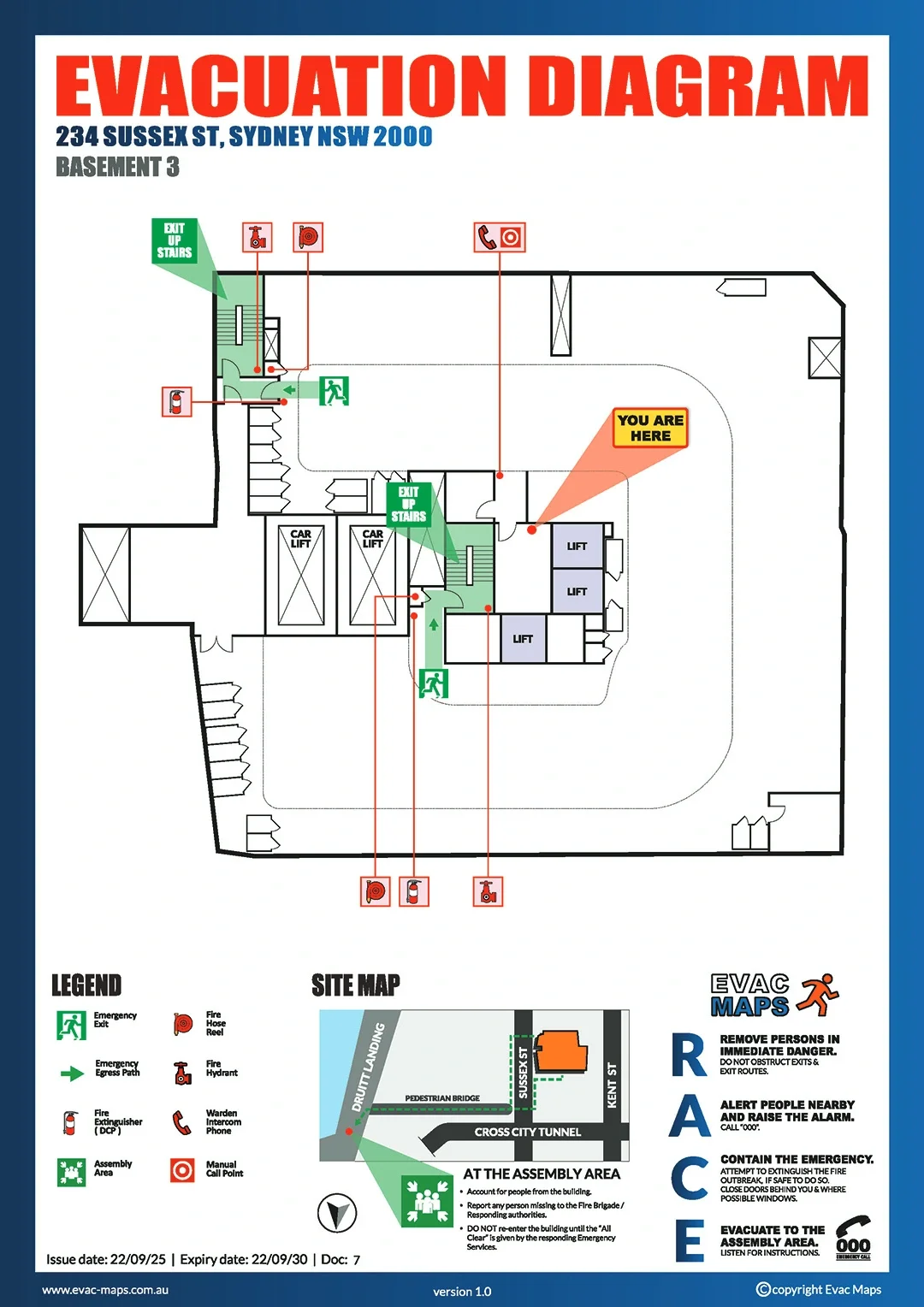

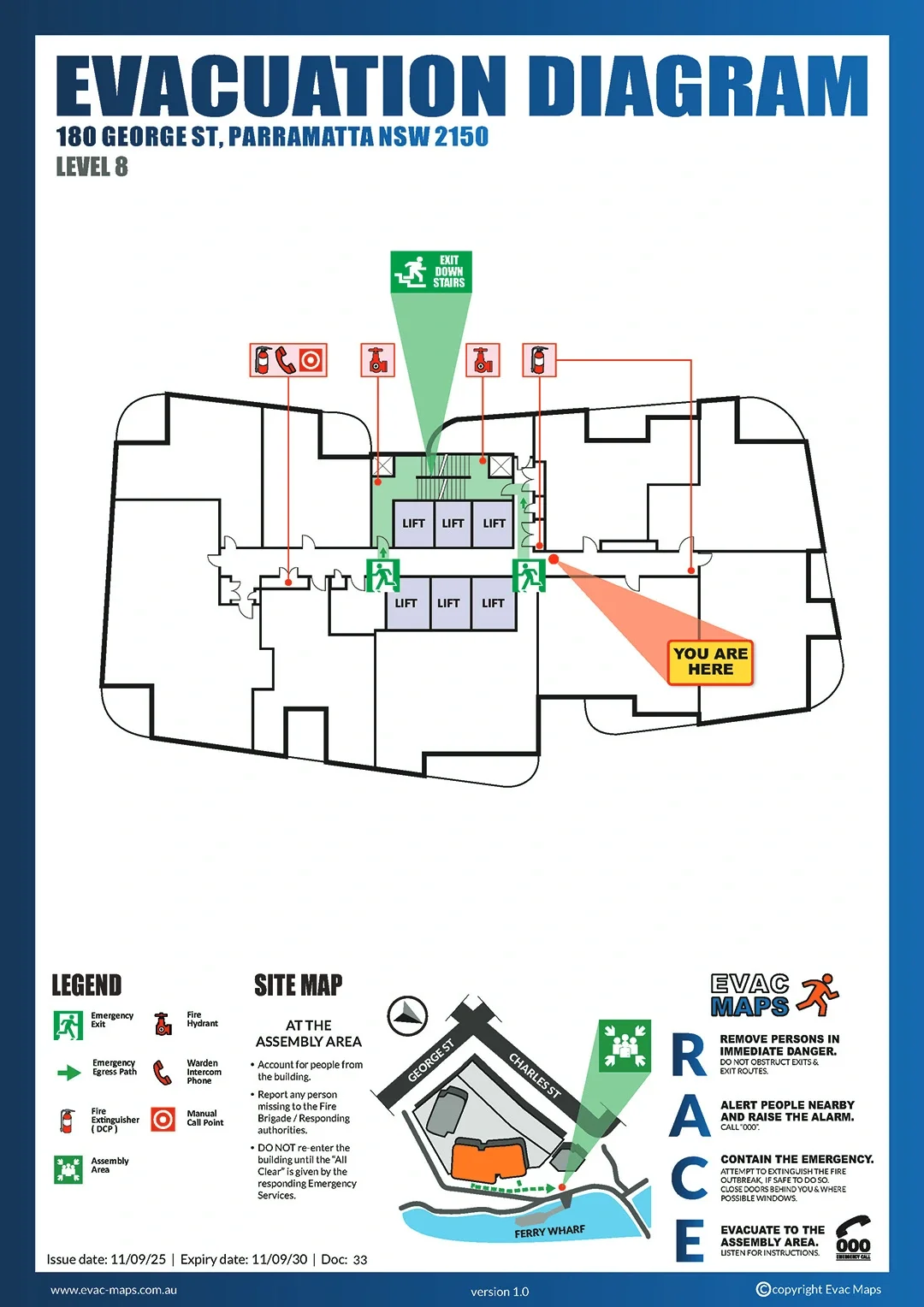

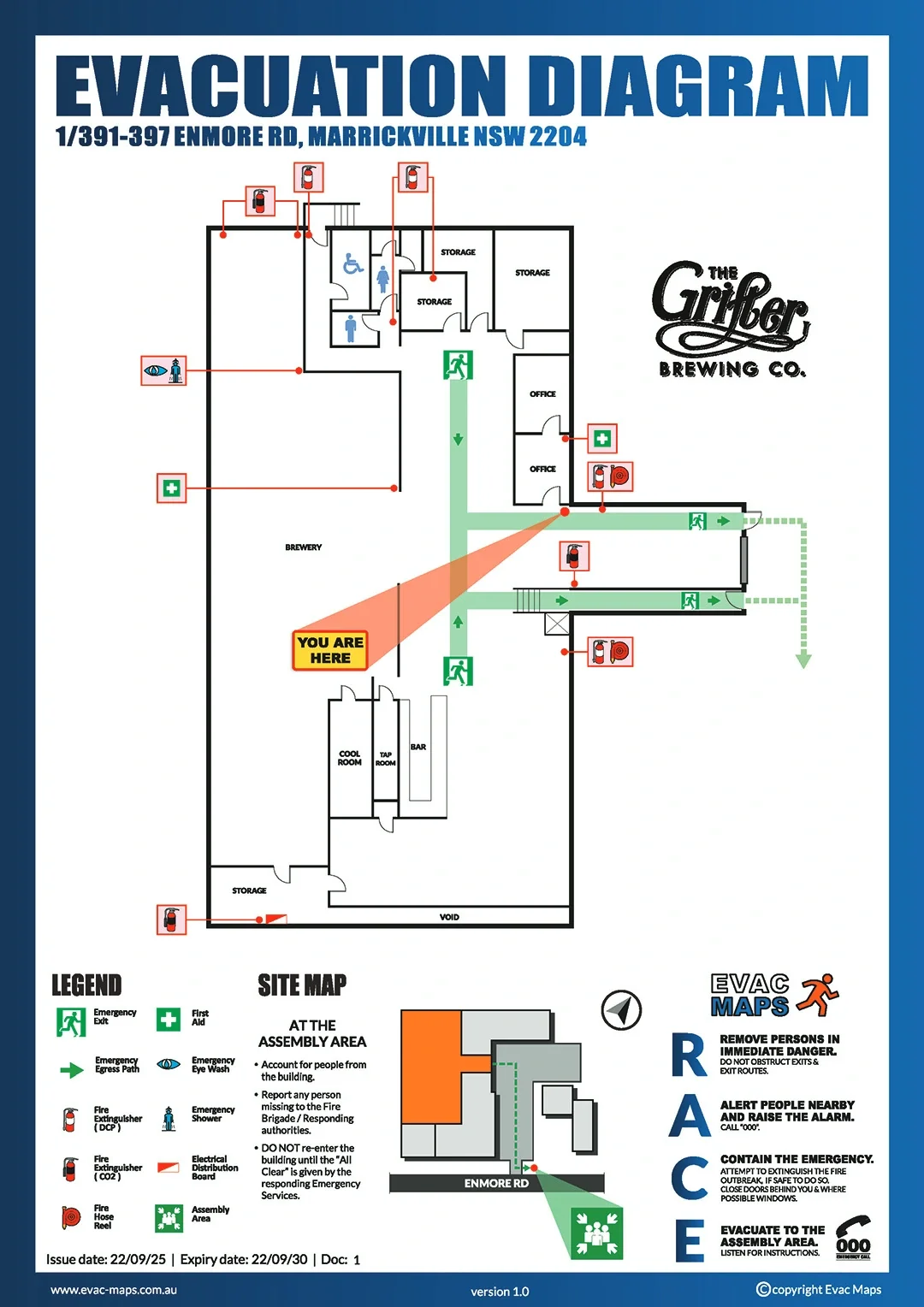

A pictorial representation of the floor or area.
The title ‘EVACUATION DIAGRAM’.
A clearly marked ‘YOU ARE HERE’ point.
Correctly oriented designated exits (shown in green).
Fire safety equipment, including hose reels, extinguishers, and fire blankets (in red).
Location of fire indicator panels (FIP), if available.
Refuges and emergency assembly areas.
A validity date and legend that match all symbols used.
Each diagram must also be specific to the viewer’s position and direction of egress, ensuring clarity and accuracy in an emergency.
Protect by Adhering to the Evacuation Requirements in SA
Non-compliance with evacuation diagram requirements can lead to severe legal and financial penalties. More importantly, it places lives at risk during emergencies. Business owners and property managers in South Australia must therefore take proactive steps to ensure evacuation diagrams are installed, up-to-date, and clearly displayed.
By ensuring compliance with evacuation requirements in SA, Evac Maps helps South Australian businesses avoid fines while promoting workplace safety. Our commitment to accuracy ensures that every detail, from exit signage to emergency assembly areas, is correctly positioned. We have an in-house team that works closely with clients to ensure diagrams are practical, easy to understand, and durable for long-term use. Our experts handle the design, production, and delivery of diagrams, giving business owners confidence that all legal obligations are met. Beyond compliance, well-placed and accurate diagrams give employees, tenants, and visitors peace of mind, knowing they can act quickly in an emergency.
